Double Facer Corrugated Machine , 5 Layer Corrugated Production Line 5.5KW 500mm
| Place of Origin | Foshan.CN |
|---|---|
| Brand Name | StarPack |
| Certification | Patent Certificate, CE Certificate |
| Model Number | Double faced Pre-heater 5 layer |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Steel Base with Carton Boxes and Film Wrapping |
| Delivery Time | 120-160 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 3 Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Cardboard Production Line, Corrugated Cardboard Making Machine, Corrugating Cardboard Production Line | Voltage | 380V 50HZ Or Custom |
|---|---|---|---|
| Type | Automatic | Condition | Brand New |
| Application | For Cardboard Making | Driven Type | Electric |
| Port Of Loading | Guangzhou Or Shenzhen China | Key Words | Cardboard Production Line |
| Highlight | Double Facer Corrugated Machine,500mm Corrugated Production Line,5.5KW Corrugated Production Line |
||
Product Description
Double faced Pre-heater 5 layer corrugated cardboard production line Corrugated cardboard production line Production line for corrugating paper board
Products Description
- A Complete Corrugating Board Production Line Includes The Following Machines:Mill Roll Stand, Pre-Heater, Splicer, Single Facer, Over Bridge, Multi-Pre-Heater, Glue Machine, Double Baker, Slitter Scorer, Cutoff, Stacker, And Ect.
- Raw Paper Roll Feeded to The Roll Stand, After Heated And Moisture Adjusted By The Per-Heater, Raw Paper Will Go To The Single Facer, Corrugated By It, And Gluing Together With Another Raw Paper To Become Single Faced Corrugating Paper, Then Conveyed Through The Over Bridge, Re-Heated By Multi-Pre-Heater, After Glued By Glue Machine, Jointed By The Double Backer, Continuous Corrugating Board Comes Out.
- After Slitting And Scorring By Slitter Scorer And Transverse Cutting By Cutoff, Corrugating Board With Different Sizes Are Produced. At Last, These Different Sizes Corrugating Board Will Be Stacked, Calculated.
- Heating Way:Steam Heating.

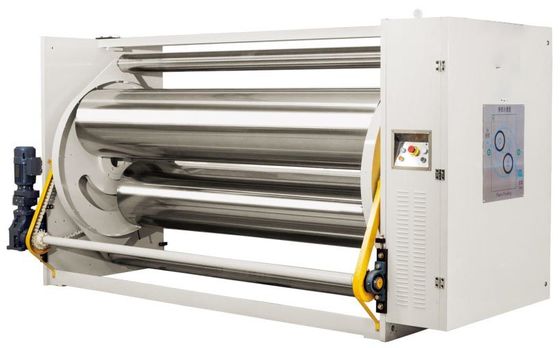

The Photo of Machine
Features
- The national patented design-double pre-heating cylinder design enables the two sides of the base paper to heated simultaneously, reducing the heating time and adjusting the water to be more even.
- The cylinder body adopts the latest surrounding heating process, which is one tenth of the volume of the traditional hot cylinder volume. It is high efficiency and energy saving, equipped with variable speed motor.
- The hot cylinder can rotate synchronously with the single facer to reduce the paper break /cut off.
- Paper guiding roller made by aluminum alloy materials,and the roller surface is linearly opened to make the base paper average the tension.
Technical Parameters
| 01 | Pre-heater’s diameter | 500mm |
| 02 | FRA "Schneider" electric apparatus. | |
| 03 | Main motor Taiwan"Chengbang" reducer motor. | 5.5KW |
| 04 | FRA "Schneider" electric apparatus | |
| 05 | ."AIRTAC" pneumatic components |
