Fully Computerized Die Cutter , 180 Sheet/min 3 Color Flexo Printing Machine

  • Fully Computerized Die Cutter , 180 Sheet/min 3 Color Flexo Printing Machine
  • Fully Computerized Die Cutter , 180 Sheet/min 3 Color Flexo Printing Machine
  • Fully Computerized Die Cutter , 180 Sheet/min 3 Color Flexo Printing Machine
Place of Origin Foshan,CN
Brand Name Toprint
Certification Patent Certificate, CE Certificate
Model Number TP-CR
Minimum Order Quantity 1 Set
Price Negociation
Packaging Details Steel Base with Carton & Bopp Film Wrapping
Delivery Time 60-90 days
Payment Terms L/C, T/T
Supply Ability 3 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Servo Control High Speed Flexo Printing Slotting Die-cutting Machine Application For All Kind Of Carton Boxes Making
Automatic Type Full-Automatic Service Video Technical Support, Installation & Training Service,Online Service
Key Words Carton Box Making Machine Warranty 1 Years Warranty
Production Address Guangdong,CN Color Custom
Highlight

Fully Computerized Die Cutter

,

180Sheet/min Computerized Die Cutter

,

3 Color Flexo Printing Machine
Leave a Message
Product Description





Full Computerized High Speed Three Color Flexo Printer Slotter Die-cutter (RDC) Carton Box Making Machine for Sale from South of China





SUMMARY OF MACHINE

Automatic Corrugated Box Making Machine, also called automatic HD Flexo printer with Varnishing and Drying, is designed to process corrugated cardboard into products such as high-quality cartons, boxes, trays, displays etc.

It can finish the process of feeding, printing, varnishing and drying at one time. All of units can be locked when it works and moveable for cleaning and maintaining.

The standard model of corrugated box making machine includes TP-CR-1224-(4+1). It is high-level one which controlled by computer with order management and sheet transfer with vacuum box.

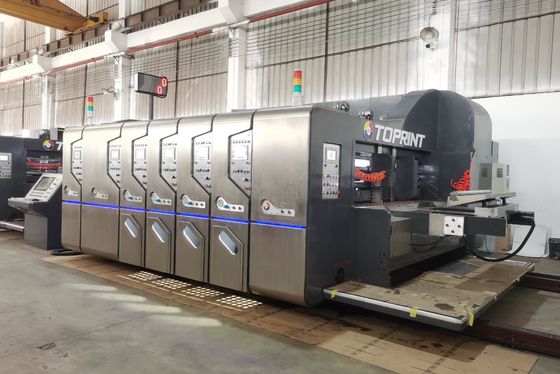

The Photo of Machine



Fully Computerized Die Cutter , 180 Sheet/min 3 Color Flexo Printing Machine 0





MAIN SPECIFICATIONS

Fully Computerized Die Cutter , 180 Sheet/min 3 Color Flexo Printing Machine 1

Model TP-CR
Size 1224
Max.Sheet Size (FxA) 1190x2400
Skip Feed Size (FxA) 1400x2400
Min.Sheet Size (FxA) 350x720
Max.Printing Area (FxA) 1190x2360
Top Speed(Sheet/min) 180
Economic Speed (sheet/min) 60-120
Sheet Thickness 1.5-11
Thickness of Printing Plate 7.2
Main Working Power(KW) 4 Colors Slotter Die-cutter 105
Stacker + Vibrator 3+10
Total Power(KW) 4 Colors Slotter Die-cutter 120
Stacker + Vibrator 3+10
Dimension (mm) 4 Colors Slotter Die-cutter 9900x5350x2650
Stacker 6500x3970x3000
Vibrator 3200x3700x1100





MACHINE FEATURS

  • Feeding Unit

Lead edge feeder with vacuum absorber.

Upper Dust remover with brushers

Sheet transfer with rubber pull rolls.

Gap of feeding rollers, Side baffles are computerized with order managing.

  • Printing Unit / Vanish Unit

Sheet transfer with vacuum box.

Ceramic Anilox roller with Chambered doctor blade system.

Automatic wasing system.

Gap of anilox roller, printing drum, vacuum box and horizontal and vertical movement are computerized with order managing.

Varnishing Unit-Same as Printing unit

Register Servo Control, more precision.

Ceramic with Doctor Blade for High Graphic Printing.

  • IR dry-well Unit

Sheet transfer with Vacuum box.

IR drying system, the IR lamp is independently control according to the sheet length.

The tempurature can be adjusted accordly to needs.

Frequency Control to save power.

Prolong Drying Unit to support the ink to get drying must faster and increase the speed.





ACCURACY ASSURANCE

Feeding ≤ ±1.5 mm
Printing(4 colors) ≤ ± 0.3 mm






PRINTING PHOTOS

Fully Computerized Die Cutter , 180 Sheet/min 3 Color Flexo Printing Machine 2





LOADING PHOTOS

Fully Computerized Die Cutter , 180 Sheet/min 3 Color Flexo Printing Machine 3





For more information, please feel free to contact with us.

THANK YOU!!!
